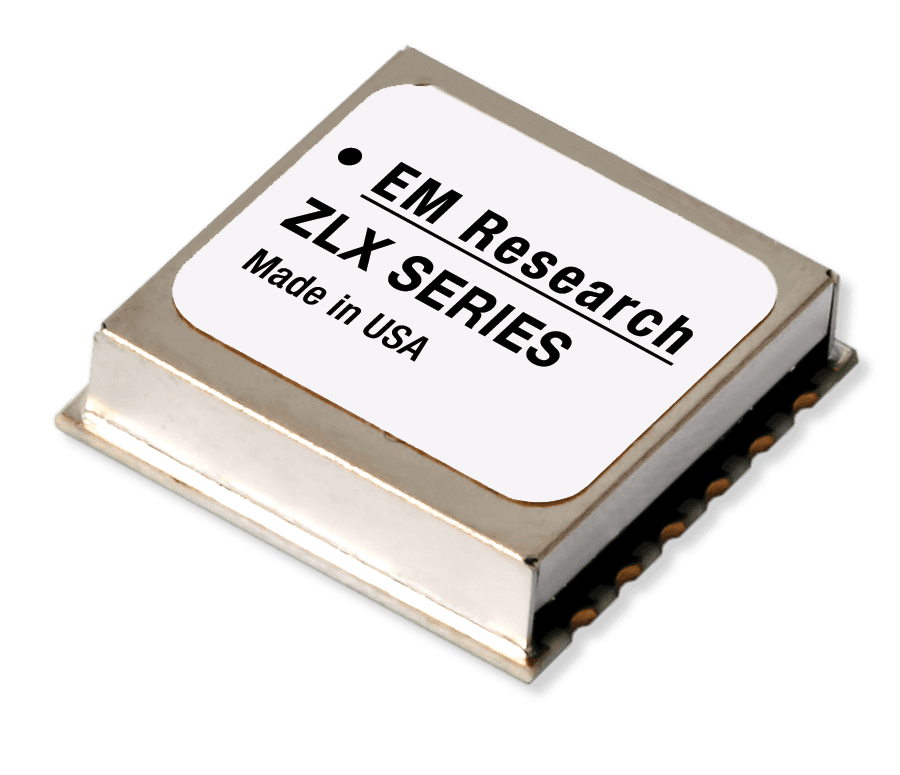

ZLX Series
FixedFixed-Frequency Synthesizer
- Frequency range
- 50 MHz – 6.5 GHz
- Package size
- 0.6” x 0.6” x 0.15”
- Surface Mount Miniature Package
- Excellent Phase Noise
- Optional Internal Reference
View Series →6 models
Products
Frequency Generation

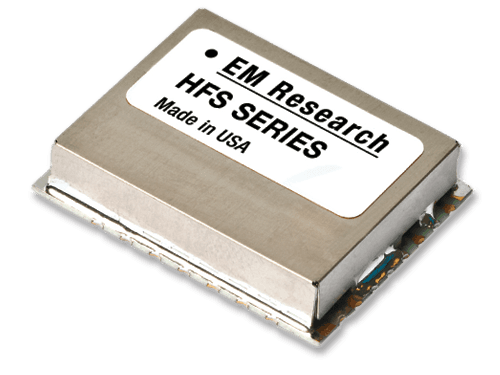

HFS Series
Fixed-Frequency Synthesizer
- Surface Mount Package
- Optional Internal Reference
- Optional Reference Detect Switch
- Internal Reference Output Available
Industries: Communications, Military, Satcom
Quick Answers
For RF Engineers
- What frequency range does the HFS Series cover?
- The HFS Series covers 50 MHz to 15 GHz.
- What package does the HFS Series come in?
- The HFS Series Fixed-Frequency Synthesizer comes in a 1.25” x 1” x 0.25” package.
- What is the Bandwidth of the HFS Series?
- HFS Series Bandwidth: Fixed.
- What is the Output of the HFS Series?
- HFS Series Output: up to +18 dBm.
- What is the Phase Noise of the HFS Series?
- HFS Series Phase Noise: <-105 dBc/Hz @ 10 KHz (Fout = 2 GHz).
- What is the Harmonics of the HFS Series?
- HFS Series Harmonics: <-20 dBc.
For Program Managers
- What industries use the HFS Series?
- The HFS Series is used in Communications, Military, Satcom applications. All models are configurable to specific requirements.
- Where is the HFS Series designed and manufactured?
- The HFS Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the HFS Series be customized for a specific program?
- Yes. All HFS Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the HFS Series?
- Submit a request through the HFS Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 50 MHz to 15 GHz |
|---|---|
| Bandwidth | Fixed |
| Output | up to +18 dBm |
| Phase Noise | <-105 dBc/Hz @ 10 KHz (Fout = 2 GHz) |
| Harmonics | <-20 dBc |
| Spurs | <-70 dBc |
| Supply Voltage | +3.3, +5 VDC Current: ≤250 mA |
| External Reference | 5 to 200 MHz |
| Input Ref. Level | ≤±5 ppm, Stability |
| Package Size | 1.25” x 1” x 0.25” |
Models — all models are configurable
| Model ID | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| HFS-206-03 | 206 MHz | +7 | -25 | Internal | -105 | -120 | -145 | +5 | 120 | QuoteSpec Sheet |
| HFS-840-03 | 840 MHz | +13 | -25 | 10 | -97 | -115 | -140 | +5 | 100 | QuoteSpec Sheet |
| HFS-1300-05 | 1.3 GHz | +12 | -40 | 100 | — | -98 | -118 | +5 | 80 | QuoteSpec Sheet |
| HFS-2320-05 | 2.32 GHz | +7 | -20 | 100 | — | -105 | -125 | +5 | 100 | QuoteSpec Sheet |
| HFS-4000-16 | 4 GHz | +10 | -25 | Internal | -87 | -98 | -120 | +5 | 100 | QuoteSpec Sheet |
| HFS-5560-03 | 5.56 GHz | +10 | -25 | 100 | — | -100 | -120 | +5 | 140 | QuoteSpec Sheet |
- Frequency
- 206 MHz
- Power Out
- +7 dBm
- Harmonics
- -25 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -105 dBc/Hz
- PN @ 10 kHz
- -120 dBc/Hz
- PN @ 100 kHz
- -145 dBc/Hz
- VCC
- +5 V
- ICC
- 120 mA
- Frequency
- 840 MHz
- Power Out
- +13 dBm
- Harmonics
- -25 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -97 dBc/Hz
- PN @ 10 kHz
- -115 dBc/Hz
- PN @ 100 kHz
- -140 dBc/Hz
- VCC
- +5 V
- ICC
- 100 mA
- Frequency
- 1.3 GHz
- Power Out
- +12 dBm
- Harmonics
- -40 dBc
- Reference
- 100 MHz
- PN @ 1 kHz
- —
- PN @ 10 kHz
- -98 dBc/Hz
- PN @ 100 kHz
- -118 dBc/Hz
- VCC
- +5 V
- ICC
- 80 mA
- Frequency
- 2.32 GHz
- Power Out
- +7 dBm
- Harmonics
- -20 dBc
- Reference
- 100 MHz
- PN @ 1 kHz
- —
- PN @ 10 kHz
- -105 dBc/Hz
- PN @ 100 kHz
- -125 dBc/Hz
- VCC
- +5 V
- ICC
- 100 mA
- Frequency
- 4 GHz
- Power Out
- +10 dBm
- Harmonics
- -25 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -87 dBc/Hz
- PN @ 10 kHz
- -98 dBc/Hz
- PN @ 100 kHz
- -120 dBc/Hz
- VCC
- +5 V
- ICC
- 100 mA
- Frequency
- 5.56 GHz
- Power Out
- +10 dBm
- Harmonics
- -25 dBc
- Reference
- 100 MHz
- PN @ 1 kHz
- —
- PN @ 10 kHz
- -100 dBc/Hz
- PN @ 100 kHz
- -120 dBc/Hz
- VCC
- +5 V
- ICC
- 140 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
