HLX Series

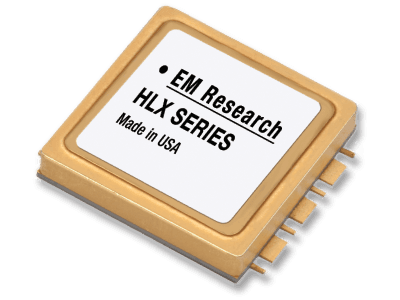

Hybrid LX Synthesizer
- Surface Mount Package
- Ruggedized, Hi-Rel
- Hermetically-Sealed per MIL-STD-883
- Extreme Shock and Vibration Tolerance
- Output Power to +14 dBm Available
Industries: Aerospace, Military
Quick Answers
For RF Engineers
- What frequency range does the HLX Series cover?
- The HLX Series covers 50 MHz to 14 GHz.
- What package does the HLX Series come in?
- The HLX Series Hybrid LX Synthesizer comes in a 0.8” x 0.8” x 0.15” package.
- What is the Bandwidth of the HLX Series?
- HLX Series Bandwidth: Fixed.
- What is the Output of the HLX Series?
- HLX Series Output: up to +14 dBm.
- What is the Phase Noise of the HLX Series?
- HLX Series Phase Noise: <-97 dBc/Hz @ 10 KHz offset (Fout = 4 GHz).
- What is the Harmonics of the HLX Series?
- HLX Series Harmonics: <-20 dBc.
For Program Managers
- What industries use the HLX Series?
- The HLX Series is used in Aerospace, Military applications. All models are configurable to specific requirements.
- Where is the HLX Series designed and manufactured?
- The HLX Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the HLX Series be customized for a specific program?
- Yes. All HLX Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the HLX Series?
- Submit a request through the HLX Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 50 MHz to 14 GHz |
|---|---|
| Bandwidth | Fixed |
| Output | up to +14 dBm |
| Phase Noise | <-97 dBc/Hz @ 10 KHz offset (Fout = 4 GHz) |
| Harmonics | <-20 dBc |
| Spurs | <-60 dBc |
| Supply Voltage | +3.3, +5 VDC Current: ≤100 mA |
| External Reference | 5 to 100 MHz |
| Package Size | 0.8” x 0.8” x 0.15” |
Models — all models are configurable
| Model ID | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| HLX-200-03 | 200 MHz | +7 | -30 | 10 | -108 | -110 | -125 | +5 | 75 | QuoteSpec Sheet |
| HLX-2250-03 | 2.25 GHz | +9 | -23 | 10 | -93 | -93 | -113 | +5 | 95 | QuoteSpec Sheet |
| HLX-8200-02 | 8.2 GHz | +7 | -25 | 100 | -85 | -90 | -100 | +5 | 185 | QuoteSpec Sheet |
| HLX-9590-02 | 9.59 GHz | +10 | -30 | 10 | -80 | -85 | -85 | +5 | 170 | QuoteSpec Sheet |
| HLX-14000-04 | 14 GHz | +6 | -20 | Internal | -80 | -93 | -95 | +5 | 250 | QuoteSpec Sheet |
- Frequency
- 200 MHz
- Power Out
- +7 dBm
- Harmonics
- -30 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -108 dBc/Hz
- PN @ 10 kHz
- -110 dBc/Hz
- PN @ 100 kHz
- -125 dBc/Hz
- VCC
- +5 V
- ICC
- 75 mA
- Frequency
- 2.25 GHz
- Power Out
- +9 dBm
- Harmonics
- -23 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -93 dBc/Hz
- PN @ 10 kHz
- -93 dBc/Hz
- PN @ 100 kHz
- -113 dBc/Hz
- VCC
- +5 V
- ICC
- 95 mA
- Frequency
- 8.2 GHz
- Power Out
- +7 dBm
- Harmonics
- -25 dBc
- Reference
- 100 MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -90 dBc/Hz
- PN @ 100 kHz
- -100 dBc/Hz
- VCC
- +5 V
- ICC
- 185 mA
- Frequency
- 9.59 GHz
- Power Out
- +10 dBm
- Harmonics
- -30 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -80 dBc/Hz
- PN @ 10 kHz
- -85 dBc/Hz
- PN @ 100 kHz
- -85 dBc/Hz
- VCC
- +5 V
- ICC
- 170 mA
- Frequency
- 14 GHz
- Power Out
- +6 dBm
- Harmonics
- -20 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -80 dBc/Hz
- PN @ 10 kHz
- -93 dBc/Hz
- PN @ 100 kHz
- -95 dBc/Hz
- VCC
- +5 V
- ICC
- 250 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
