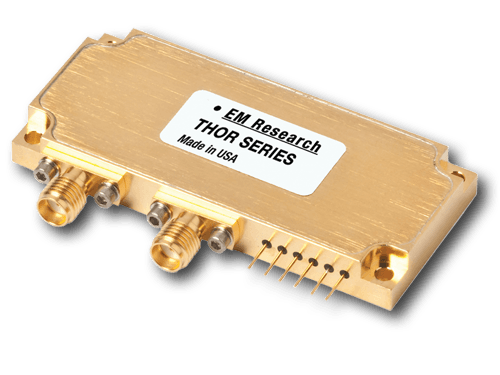

THOR Series
Fixed-Frequency Synthesizer
- Modular Mount Package
- Ruggedized, Hi-Rel
- Removeable SMA Connectors
- Optionally Hermetically-Sealed
- High Shock and Vibration Tolerance
Quick Answers
For RF Engineers
- What frequency range does the THOR Series cover?
- The THOR Series covers 30 MHz to 30 GHz.
- What package does the THOR Series come in?
- The THOR Series Fixed-Frequency Synthesizer comes in a 2.5” x 1.1” x 0.4” package.
- What is the Bandwidth of the THOR Series?
- THOR Series Bandwidth: Fixed.
- What is the Output of the THOR Series?
- THOR Series Output: +20.
- What is the Phase Noise of the THOR Series?
- THOR Series Phase Noise: <-95 dBc/Hz @ 10 KHz offset (Fout = 10.75 GHz).
- What is the Harmonics of the THOR Series?
- THOR Series Harmonics: <-30 dBc.
For Program Managers
- Where is the THOR Series designed and manufactured?
- The THOR Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the THOR Series be customized for a specific program?
- Yes. All THOR Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the THOR Series?
- Submit a request through the THOR Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 30 MHz to 30 GHz |
|---|---|
| Bandwidth | Fixed |
| Output | +20 |
| Phase Noise | <-95 dBc/Hz @ 10 KHz offset (Fout = 10.75 GHz) |
| Harmonics | <-30 dBc |
| Spurs | <-60 dBc |
| Supply Voltage | +5, +8, +12 VDC Current: ≤390 mA |
| External Reference | 5 to 200 MHz |
| Package Size | 2.5” x 1.1” x 0.4” |
Models — all models are configurable
| Model ID | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| THOR-2380-02 | 2.38 GHz | +20 | -20 | 10 | -90 | -95 | -120 | +5 ± 0.15 | 225 | QuoteSpec Sheet |
| THOR-10900-03 | 10.9 GHz | +20 | -30 | Internal | -80 | -85 | -11 | +5 ± 0.15 | 225 | QuoteSpec Sheet |
| THOR-12800-10 | 12.8 GHz | +7 | -30 | 50 | -90 | -95 | -120 | +5 ± 0.15 | 200 | QuoteSpec Sheet |
| THOR-14275-04 | 14.28 GHz | +12 | -20 | 25 | -75 | -85 | -95 | +5 ± 0.15 | 375 | QuoteSpec Sheet |
| THOR-18300-02 | 18.3 GHz | +19.5 | -20 | Internal | -85 | -90 | -93 | +5 ± 0.15 | 325 | QuoteSpec Sheet |
- Frequency
- 2.38 GHz
- Power Out
- +20 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -90 dBc/Hz
- PN @ 10 kHz
- -95 dBc/Hz
- PN @ 100 kHz
- -120 dBc/Hz
- VCC
- +5 ± 0.15 V
- ICC
- 225 mA
- Frequency
- 10.9 GHz
- Power Out
- +20 dBm
- Harmonics
- -30 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -80 dBc/Hz
- PN @ 10 kHz
- -85 dBc/Hz
- PN @ 100 kHz
- -11 dBc/Hz
- VCC
- +5 ± 0.15 V
- ICC
- 225 mA
- Frequency
- 12.8 GHz
- Power Out
- +7 dBm
- Harmonics
- -30 dBc
- Reference
- 50 MHz
- PN @ 1 kHz
- -90 dBc/Hz
- PN @ 10 kHz
- -95 dBc/Hz
- PN @ 100 kHz
- -120 dBc/Hz
- VCC
- +5 ± 0.15 V
- ICC
- 200 mA
- Frequency
- 14.28 GHz
- Power Out
- +12 dBm
- Harmonics
- -20 dBc
- Reference
- 25 MHz
- PN @ 1 kHz
- -75 dBc/Hz
- PN @ 10 kHz
- -85 dBc/Hz
- PN @ 100 kHz
- -95 dBc/Hz
- VCC
- +5 ± 0.15 V
- ICC
- 375 mA
- Frequency
- 18.3 GHz
- Power Out
- +19.5 dBm
- Harmonics
- -20 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -90 dBc/Hz
- PN @ 100 kHz
- -93 dBc/Hz
- VCC
- +5 ± 0.15 V
- ICC
- 325 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
