Signal Conversion

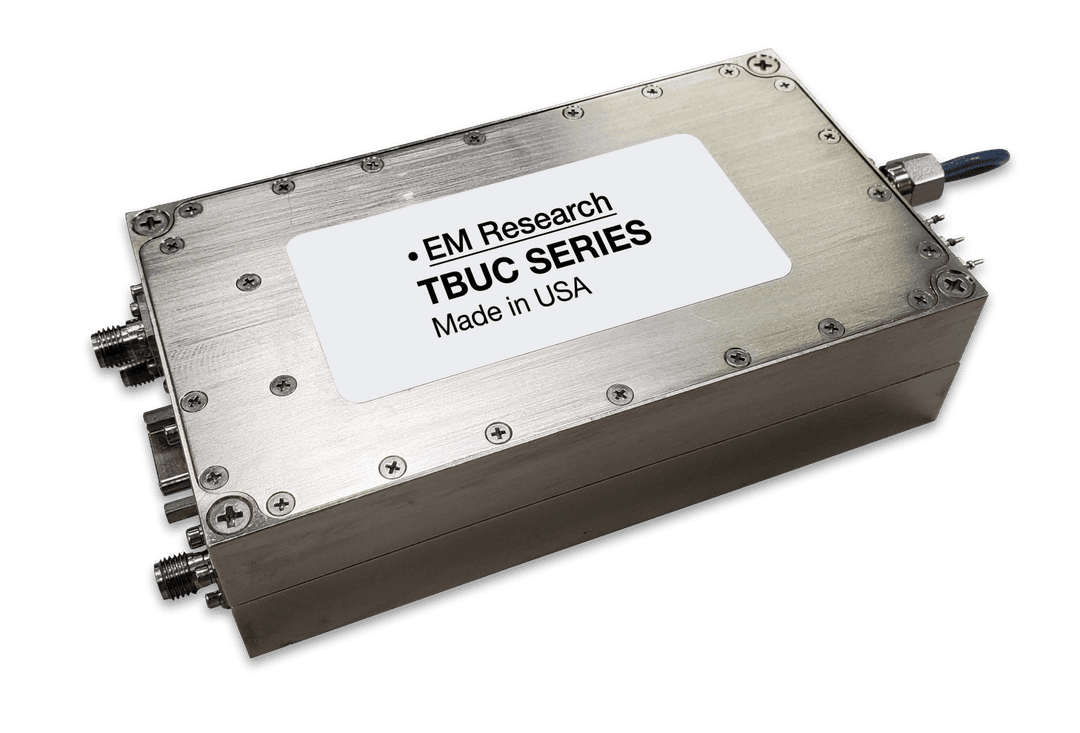

TBUC Series
Triple Band Block Up-Converter
- Connectorized package
- Wide choice of frequency ranges
- Three digitally selectable Ka Band frequency ranges
- Integrated filters
- Gain control
- Low power consumption
- Low phase noise
- Low spurs
- CAN, RS-232, I2C, or SPI control
- Internal / External references
Industries: Aerospace, Satcom
Quick Answers
For RF Engineers
- What frequency range does the TBUC Series cover?
- The TBUC Series covers 27.5 GHz to 30 GHz.
For Program Managers
- What industries use the TBUC Series?
- The TBUC Series is used in Aerospace, Satcom applications. All models are configurable to specific requirements.
- Where is the TBUC Series designed and manufactured?
- The TBUC Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the TBUC Series be customized for a specific program?
- Yes. All TBUC Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the TBUC Series?
- Submit a request through the TBUC Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 27.5 GHz to 30 GHz |
|---|
Models — all models are configurable
| Model ID | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| TBUC-30000-10 | Band 1 27.5 GHzBand 2 28.5 GHzBand 3 29 GHz | Band 1 28.5 GHzBand 2 29.5 GHzBand 3 30 GHz | 10 | -78 | -88 | -98 | +12 | 950 | QuoteSpec Sheet |
- Frequency
- 3 bands
- Reference
- 10 MHz
- PN @ 1 kHz
- -78 dBc/Hz
- PN @ 10 kHz
- -88 dBc/Hz
- PN @ 100 kHz
- -98 dBc/Hz
- VCC
- +12 V
- ICC
- 950 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
