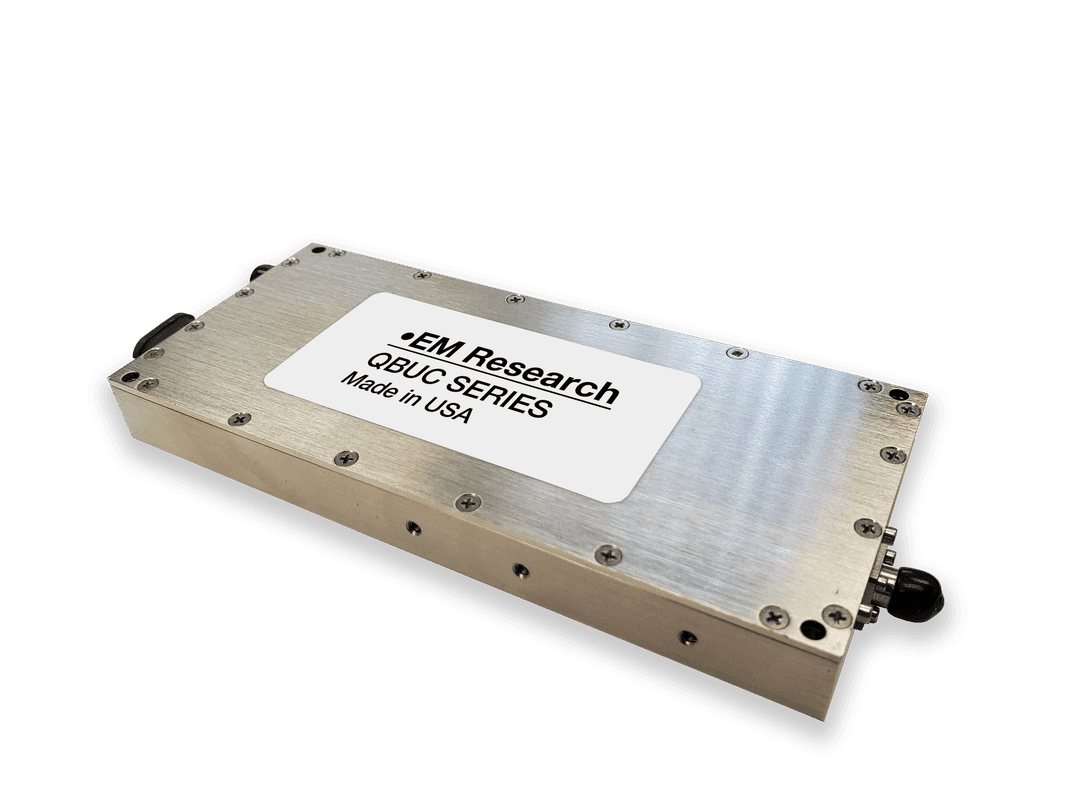

QBUC Series
Quad Band Block Up-Converter
- Connectorized Package
- Wide choice of frequency ranges
- Quadruple Band
- Four digitally selectable Ku, K, Ka Band frequency ranges available
- Integrated filters
- Gain control
- Low power consumption
- Low phase noise
- Low spurs
- CAN, RS-232, I2C, SPI and RS485 Control
- Internal / External references
Industries: Aerospace, Military, Satcom
Quick Answers
For RF Engineers
- What frequency range does the QBUC Series cover?
- The QBUC Series covers 27.5 GHz to 31 GHz across 4 selectable bands.
- What package does the QBUC Series come in?
- The QBUC Series Quad Band Block Up-Converter comes in a 6.6” x 2.5” x .6” package.
- What is the Output of the QBUC Series?
- QBUC Series Output: 0.95 GHz-1.95 GHz.
- What is the Phase Noise of the QBUC Series?
- QBUC Series Phase Noise: -98 dBc/Hz@100KHz.
- What is the Conversion Gain of the QBUC Series?
- QBUC Series Conversion Gain: 0 ±2 dB.
- What is the Harmonics of the QBUC Series?
- QBUC Series Harmonics: -45 dBc typ, -40 dBc max.
For Program Managers
- What industries use the QBUC Series?
- The QBUC Series is used in Aerospace, Military, Satcom applications. All models are configurable to specific requirements.
- Where is the QBUC Series designed and manufactured?
- The QBUC Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the QBUC Series be customized for a specific program?
- Yes. All QBUC Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the QBUC Series?
- Submit a request through the QBUC Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 27.5 GHz to 31 GHz |
|---|---|
| Output | 0.95 GHz-1.95 GHz |
| Phase Noise | -98 dBc/Hz@100KHz |
| Conversion Gain | 0 ±2 dB |
| Harmonics | -45 dBc typ, -40 dBc max |
| Spurs | -60 dBc, max |
| Input Level | +15 dBm |
| Supply Voltage | +12 VDC, ±0.5V |
| Temperature Range | -20°C to +70°C, Case |
| Internal Reference | Optional |
| Stability | Same as Reference |
| Input Ref. Level | -3 to +3 dBm |
| Package Size | 6.6” x 2.5” x .6” |
Models — all models are configurable
| Model ID | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 31000-04 | Band A 27.5 GHzBand B 28.25 GHzBand C 29 GHzBand D 30 GHz | Band A 28.5 GHzBand B 29.25 GHzBand C 30 GHzBand D 31 GHz | +10 | -45 typ | 100 MHz | -78 | -88 | -98 | 12 VDC ±0.5V | 800 | 0 ±2 dB | -20°C to +70°C, Case | QuoteSpec Sheet |
- Frequency
- 4 bands
- Power Out
- +10 dBm
- Harmonics
- -45 typ dBc
- Reference
- 100 MHz MHz
- PN @ 1 kHz
- -78 dBc/Hz
- PN @ 10 kHz
- -88 dBc/Hz
- PN @ 100 kHz
- -98 dBc/Hz
- VCC
- 12 VDC ±0.5V V
- ICC
- 800 mA
- Gain
- 0 ±2 dB dB
- Temp Range
- -20°C to +70°C, Case
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
Related Products
Transceiver
- X, Ku, K, and Ka-Bands Available
- Low SWaP connectorized package 2.5” x 6.7” x 0.6”
- Internal low phase noise LO synthesizers
View Series →1 model

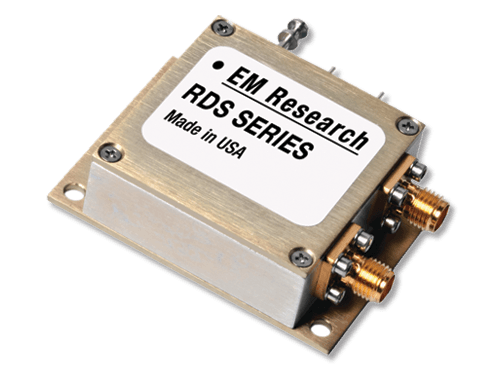

RDS Series
