Signal Conversion

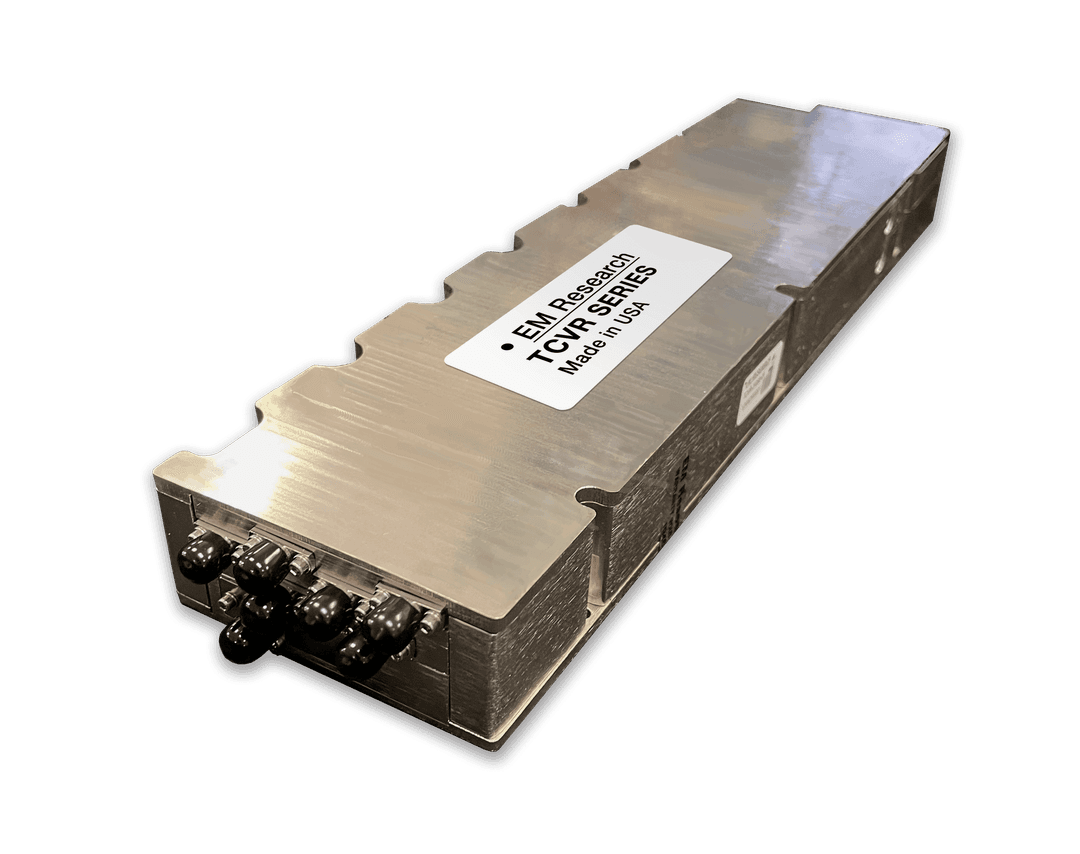

TCVR Series
Transceiver
- X, Ku, K, and Ka-Bands Available
- Low SWaP connectorized package 2.5” x 6.7” x 0.6”
- Internal low phase noise LO synthesizers
- Excellent linearity
- Instantaneous band width up to 1200 MHz
- IF range configurable within L-Band (950-2150 MHz)
- RF range configurable to 33 GHz
- Internal image and LO blocking filters TCVR Series Options:
- Single or multiple switchable bands are configurable
- Fixed or programmable gain
- IF power detector for customer signal level monitoring
- IF + RF power detectors for gain monitoring
- Internal temperature sensor readout for monitoring
- LO reference can be external or internal
- External LO reference can be multiplexed on IF or on independent SMA connector
- Hermetic sealing
Industries: Aerospace, Communications, Satcom
Quick Answers
For Program Managers
- What industries use the TCVR Series?
- The TCVR Series is used in Aerospace, Communications, Satcom applications. All models are configurable to specific requirements.
- Where is the TCVR Series designed and manufactured?
- The TCVR Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the TCVR Series be customized for a specific program?
- Yes. All TCVR Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the TCVR Series?
- Submit a request through the TCVR Series configuration form and EM Research will respond within 1 business day.
Series Specifications
Models — all models are configurable
| Model ID | ||
|---|---|---|
| TCVR Series | — | QuoteSpec Sheet |
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
