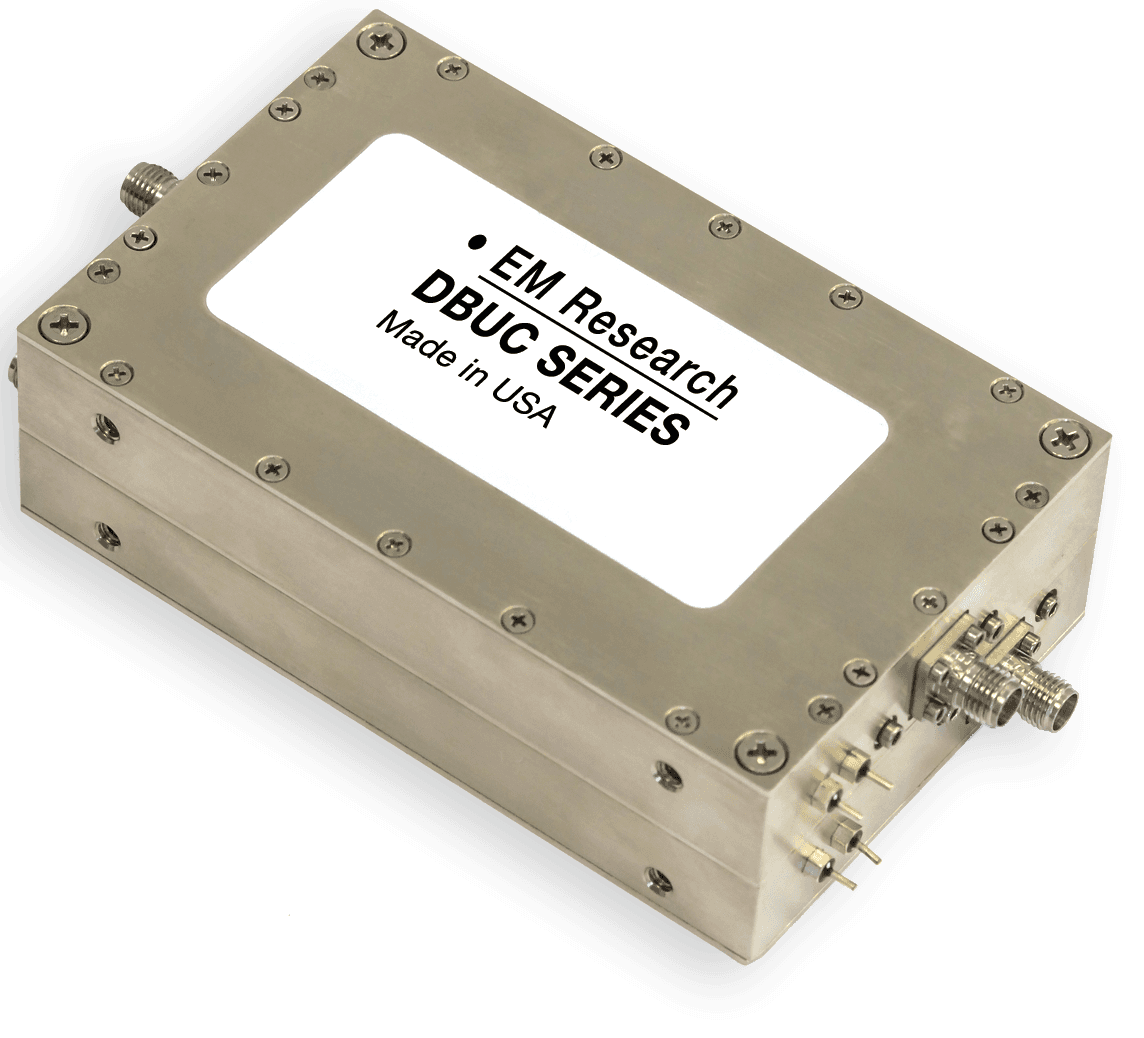

Dual Band Block Up-Converter
- Frequency range
- 27.55 GHz – 31 GHz
- Connectorized Package
- Wide Choice of Frequency Ranges
- Dual Band
View Series →3 models
Products
Signal Conversion

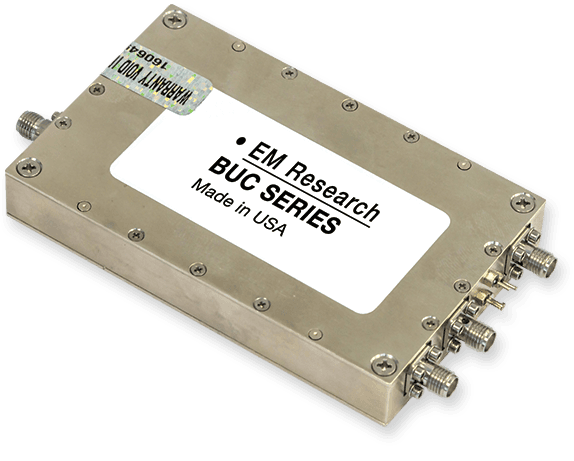

BUC Series
Block Up-Converter
- Connectorized Package
- Compact, Rugged Design
- C, X, Ku, K, and Ka-Bands Available
- L-Band Inputs (950-2150 MHz)
- Internal or External Filters Available
- Variable Attenuation Control via CAN +5V Logic, SPI, RS232, or I²C
Industries: Aerospace, Communications, Satcom
Quick Answers
For RF Engineers
- What frequency range does the BUC Series cover?
- The BUC Series covers 10 MHz to 40 GHz.
- What package does the BUC Series come in?
- The BUC Series Block Up-Converter comes in a 5” x 2.5” x 0.6” package.
For Program Managers
- What industries use the BUC Series?
- The BUC Series is used in Aerospace, Communications, Satcom applications. All models are configurable to specific requirements.
- Where is the BUC Series designed and manufactured?
- The BUC Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the BUC Series be customized for a specific program?
- Yes. All BUC Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the BUC Series?
- Submit a request through the BUC Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 10 MHz to 40 GHz |
|---|---|
| Package Size | 5” x 2.5” x 0.6” |
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| BUC-14500-07 | 13.75 GHz | 14.5 GHz | 0 | -50 | 10 | -85 | -100 | -105 | +12 | 650 | QuoteSpec Sheet |
| BUC-18400-04 | 17.3 GHz | 18.4 GHz | 0 | -20 | 10 | -78 | -88 | -98 | +24 | 375 | QuoteSpec Sheet |
| BUC-28500-06 | 27.5 GHz | 28.5 GHz | 0 | -20 | 10 | -95 | -108 | -108 | +12 | 775 | QuoteSpec Sheet |
| BUC-28550-02 | 27.55 GHz | 28.55 GHz | 0 | -60 | 10 | -78 | -88 | -98 | +8 | 775 | QuoteSpec Sheet |
| BUC-29150-03 | 28.15 GHz | 29.15 GHz | 0 | -60 | 10 | -78 | -88 | -98 | +8 | 775 | QuoteSpec Sheet |
| BUC-29500-03 | 28.5 GHz | 29.5 GHz | 0 | -30 | 10 | -74 | -84 | -94 | +7 | 650 | QuoteSpec Sheet |
| BUC-30000-15 | 29 GHz | 30 GHz | 0 | -60 | 10 | -82 | -92 | -100 | +8 | 775 | QuoteSpec Sheet |
| BUC-31000-18 | 30 GHz | 31 GHz | +3 | -60 | 10 | -78 | -88 | -98 | +12 | 1050 | QuoteSpec Sheet |
- Frequency
- 13.75 GHz – 14.5 GHz
- Power Out
- 0 dBm
- Harmonics
- -50 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -100 dBc/Hz
- PN @ 100 kHz
- -105 dBc/Hz
- VCC
- +12 V
- ICC
- 650 mA
- Frequency
- 17.3 GHz – 18.4 GHz
- Power Out
- 0 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -78 dBc/Hz
- PN @ 10 kHz
- -88 dBc/Hz
- PN @ 100 kHz
- -98 dBc/Hz
- VCC
- +24 V
- ICC
- 375 mA
- Frequency
- 27.5 GHz – 28.5 GHz
- Power Out
- 0 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -95 dBc/Hz
- PN @ 10 kHz
- -108 dBc/Hz
- PN @ 100 kHz
- -108 dBc/Hz
- VCC
- +12 V
- ICC
- 775 mA
- Frequency
- 27.55 GHz – 28.55 GHz
- Power Out
- 0 dBm
- Harmonics
- -60 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -78 dBc/Hz
- PN @ 10 kHz
- -88 dBc/Hz
- PN @ 100 kHz
- -98 dBc/Hz
- VCC
- +8 V
- ICC
- 775 mA
- Frequency
- 28.15 GHz – 29.15 GHz
- Power Out
- 0 dBm
- Harmonics
- -60 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -78 dBc/Hz
- PN @ 10 kHz
- -88 dBc/Hz
- PN @ 100 kHz
- -98 dBc/Hz
- VCC
- +8 V
- ICC
- 775 mA
- Frequency
- 28.5 GHz – 29.5 GHz
- Power Out
- 0 dBm
- Harmonics
- -30 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -74 dBc/Hz
- PN @ 10 kHz
- -84 dBc/Hz
- PN @ 100 kHz
- -94 dBc/Hz
- VCC
- +7 V
- ICC
- 650 mA
- Frequency
- 29 GHz – 30 GHz
- Power Out
- 0 dBm
- Harmonics
- -60 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -82 dBc/Hz
- PN @ 10 kHz
- -92 dBc/Hz
- PN @ 100 kHz
- -100 dBc/Hz
- VCC
- +8 V
- ICC
- 775 mA
- Frequency
- 30 GHz – 31 GHz
- Power Out
- +3 dBm
- Harmonics
- -60 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -78 dBc/Hz
- PN @ 10 kHz
- -88 dBc/Hz
- PN @ 100 kHz
- -98 dBc/Hz
- VCC
- +12 V
- ICC
- 1050 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
Related Products
Quad Band Block Up-Converter
- Frequency range
- 27.5 GHz – 31 GHz
- Package size
- 6.6” x 2.5” x .6”
- Connectorized Package
- Wide choice of frequency ranges
- Quadruple Band
View Series →1 model

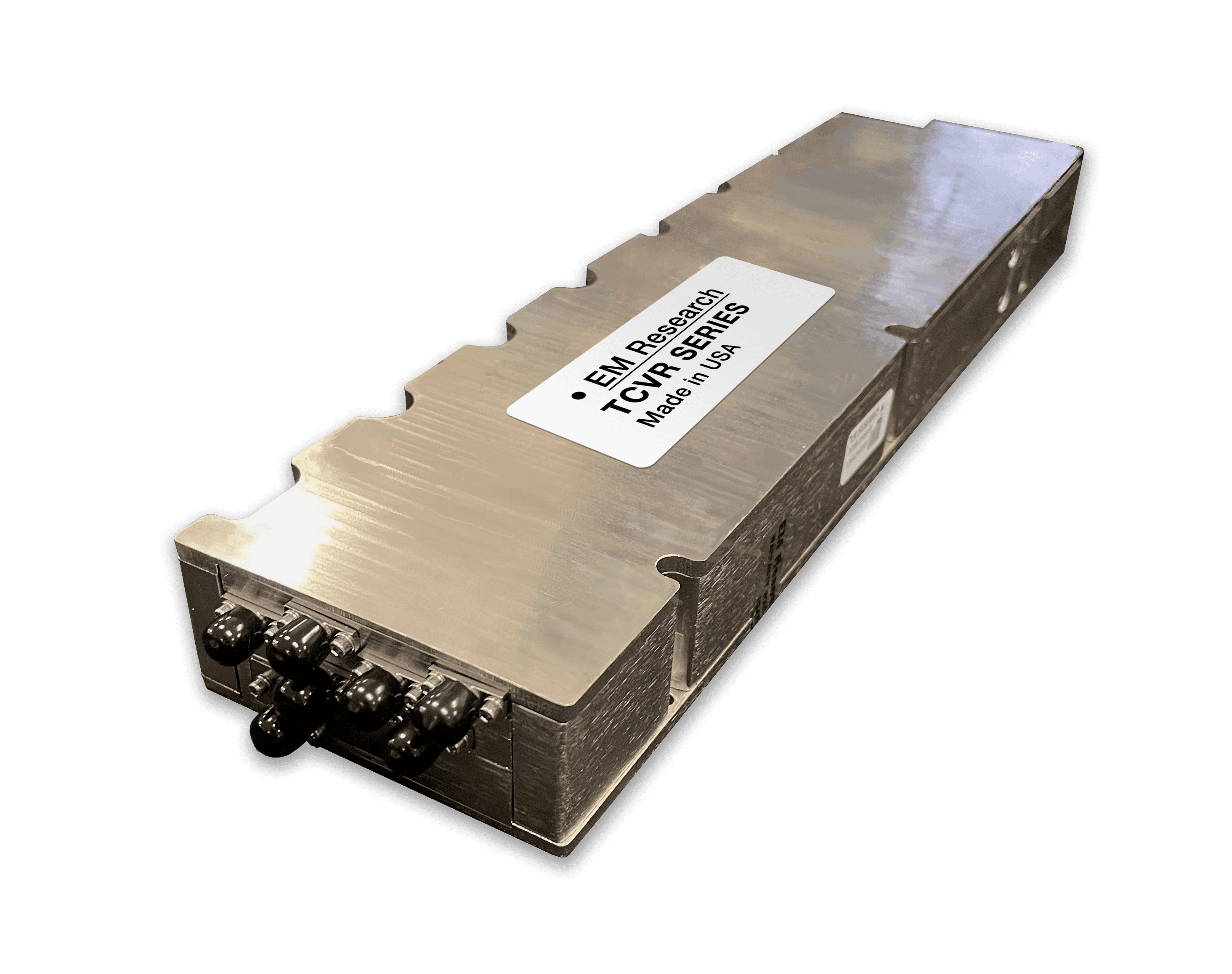

Transceiver
