Digital Data Sheet

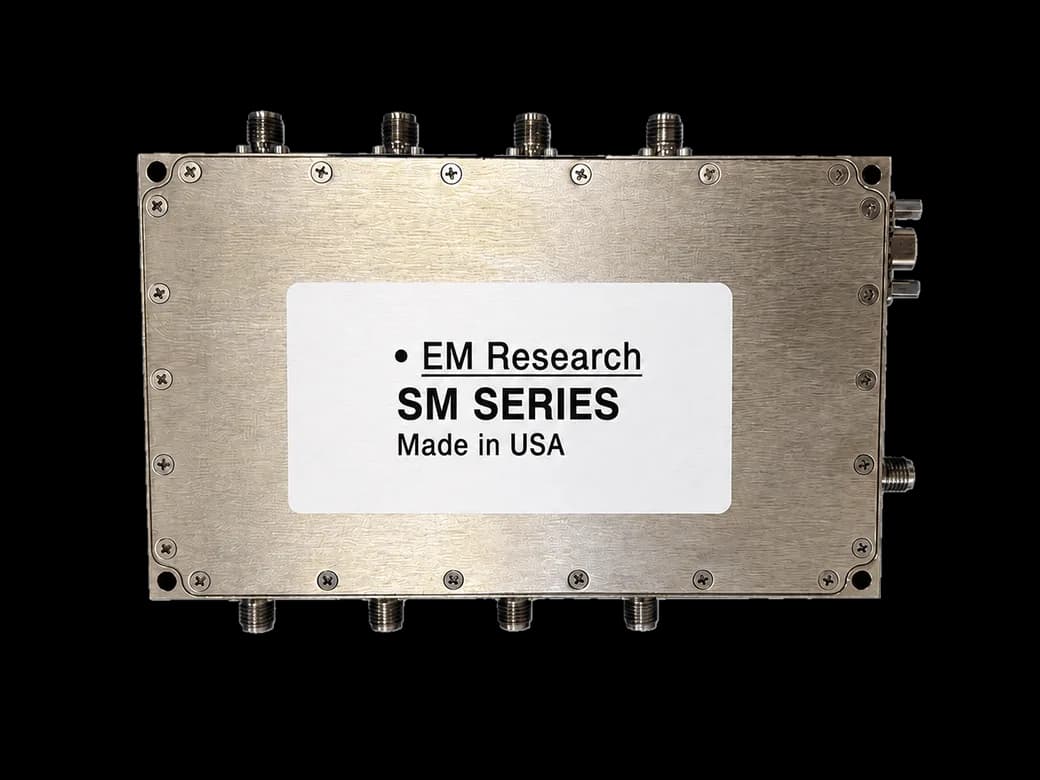

SM-4600-01
4x4 IF Switch Matrix
Route any input to any output. A 4x4 IF switch matrix covering 10 MHz to 4600 MHz with high port-to-port isolation, fast switching, and a monitor port, in a compact connectorized package. All models configurable.
Series Features
- Connectorized package
- 4x4 IF switch matrix
- Any input to any output
- High isolation
- Fast switching
- Monitor port
- Excellent SWaP, small form factor
- Low power consumption
- Wider temperature ranges optional
- Ruggedization possible
- RS232, RS485, CAN, SPI and I2C control
Applied Industries
Aerospace · Military · Satcom · Electronic Defense
Frequency
10 MHz – 4.6 GHz
Electrical Specifications
| Gain | -2 ±1 |
|---|---|
| VCC | +12 |
| ICC | 85 mA |
Environmental
| Temp Range | -20°C to +60°C, Case |
|---|
Mechanical
| Package | 5.0” x 3.0” x 0.7” |
|---|
All specifications are typical unless otherwise specified and subject to change without notice. All models are configurable — contact EM Research for custom frequencies, packages, and screening.
