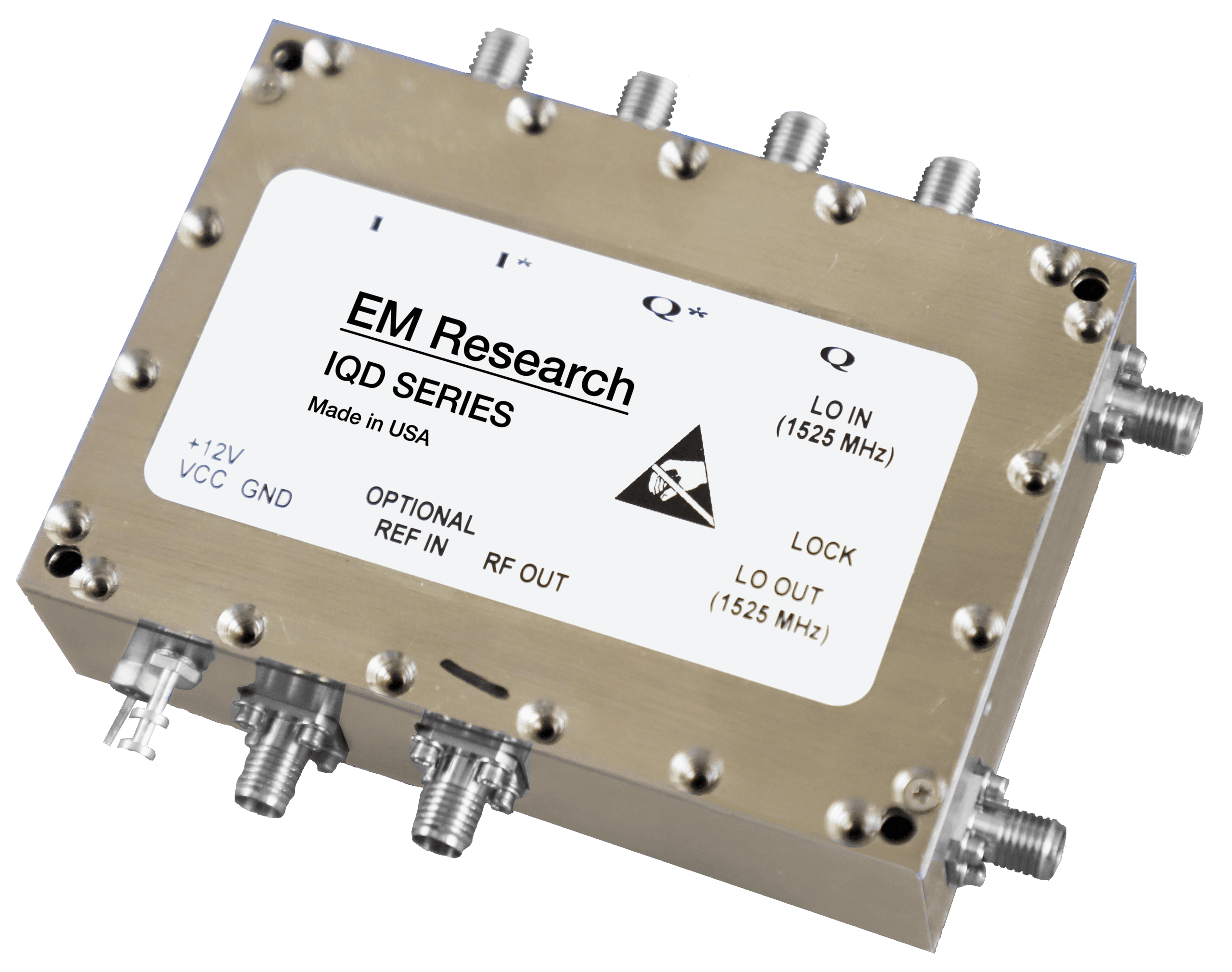

IQ Demodulator
- Frequency range
- 650 MHz – 1.65 GHz
- Capable of receiving RF and LO frequency inputs
- Output from DC to 500 MHz
- Internal low noise oscillator
View Series →1 model
Products
Integrated Microwave Assemblies Solutions

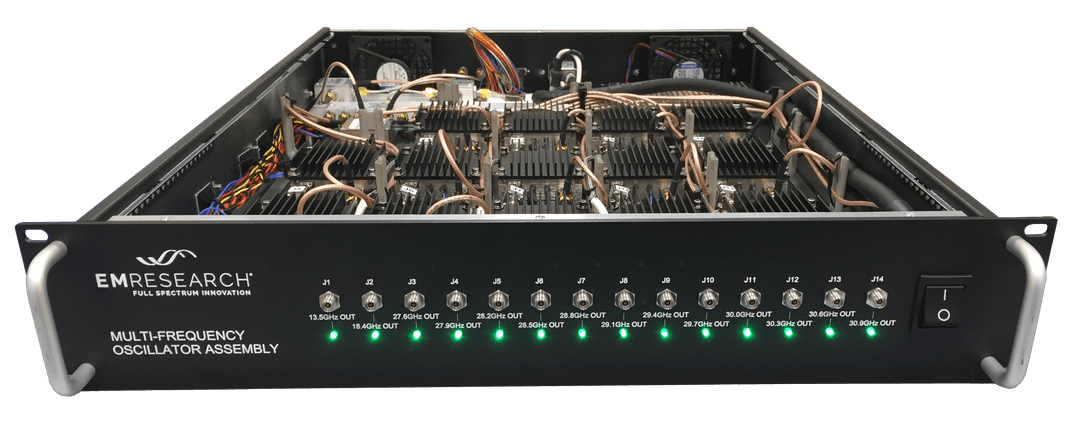

MTS Series
Multi-Tone Source
- ultimate laboratory solution
- up to 14 independent fixed output frequencies with
- excellent phase noise
- internal cooling fans
- heatsinks,
- LED lock indication
- 37 pin micro-D on/off control.
Quick Answers
For RF Engineers
- What frequency range does the MTS Series cover?
- The MTS Series covers 10 MHz to 42 GHz.
- What package does the MTS Series come in?
- The MTS Series Multi-Tone Source comes in a Standard 2U Rack Mount package.
- What is the Bandwidth of the MTS Series?
- MTS Series Bandwidth: 14 independent fixed frequencies.
- What is the Output of the MTS Series?
- MTS Series Output: +26 dB.
- What is the Output / Input Isolation of the MTS Series?
- MTS Series Output / Input Isolation: >70 dB between channels.
- What is the Supply Voltage of the MTS Series?
- MTS Series Supply Voltage: 110 V or 240 V at 60 Hz.
For Program Managers
- Where is the MTS Series designed and manufactured?
- The MTS Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the MTS Series be customized for a specific program?
- Yes. All MTS Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the MTS Series?
- Submit a request through the MTS Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 10 MHz to 42 GHz |
|---|---|
| Bandwidth | 14 independent fixed frequencies |
| Output | +26 dB |
| Output / Input Isolation | >70 dB between channels |
| Supply Voltage | 110 V or 240 V at 60 Hz |
| Internal Reference | Optional with RDS |
| External Reference | Optional, 100 MHz |
| Package Size | Standard 2U Rack Mount |
Models — all models are configurable
| Model ID | |||||||
|---|---|---|---|---|---|---|---|
| MTS Series | 0.00005 MHz | 40 GHz | +26 | Available 5 to 500 MHz | 100 V or 240 V | 60 | QuoteSpec Sheet |
- Frequency
- 0.00005 MHz – 40 GHz
- Power Out
- +26 dBm
- Reference
- Available 5 to 500 MHz MHz
- VCC
- 100 V or 240 V V
- ICC
- 60 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
Related Products

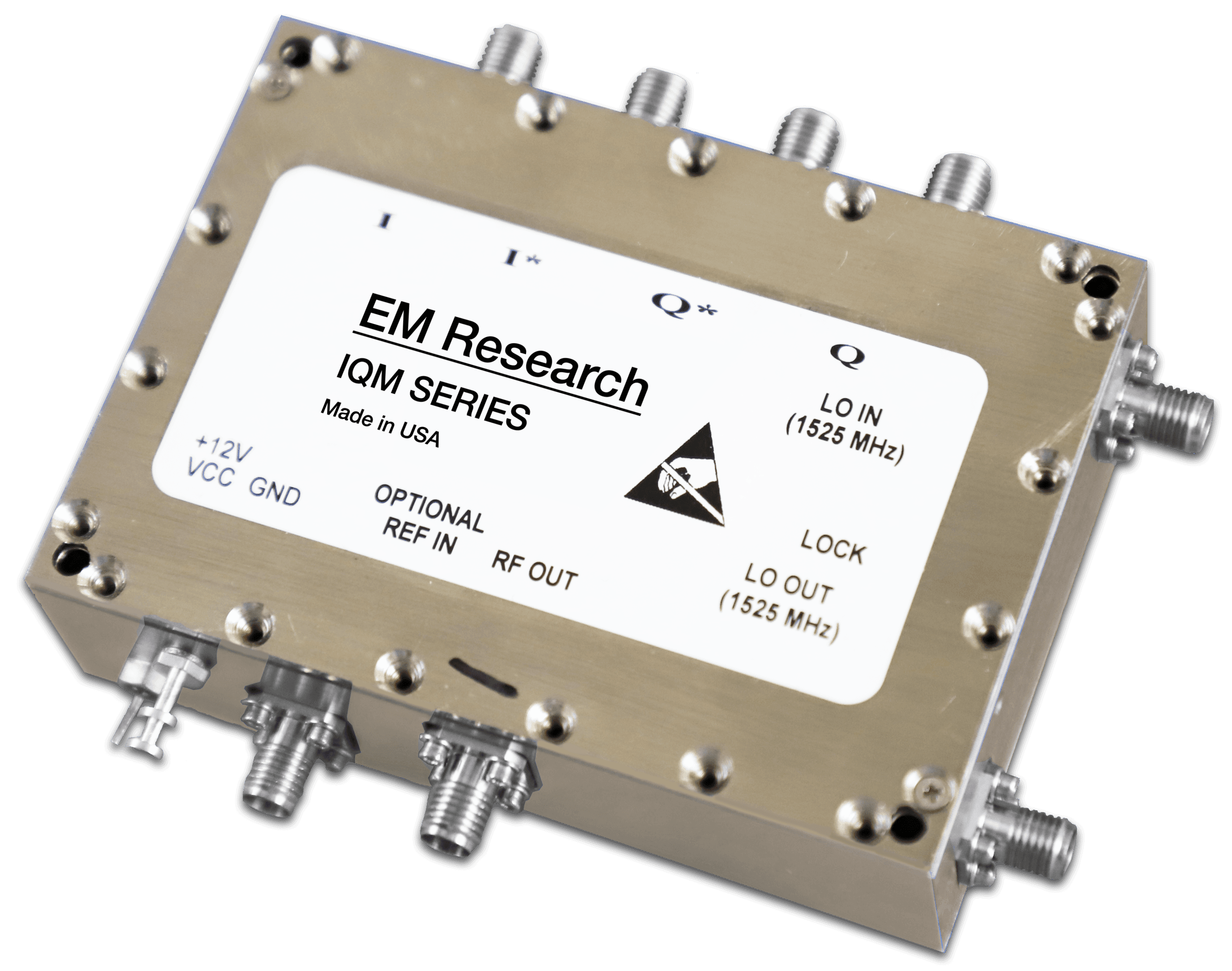

IQ Modulator
- Frequency range
- 1.02 GHz – 2.02 GHz
- Capable of receiving from DC to 500 MHz, LO inputs, outputting RF frequencies
- Internal low noise oscillator
- Internal reference
View Series →1 model

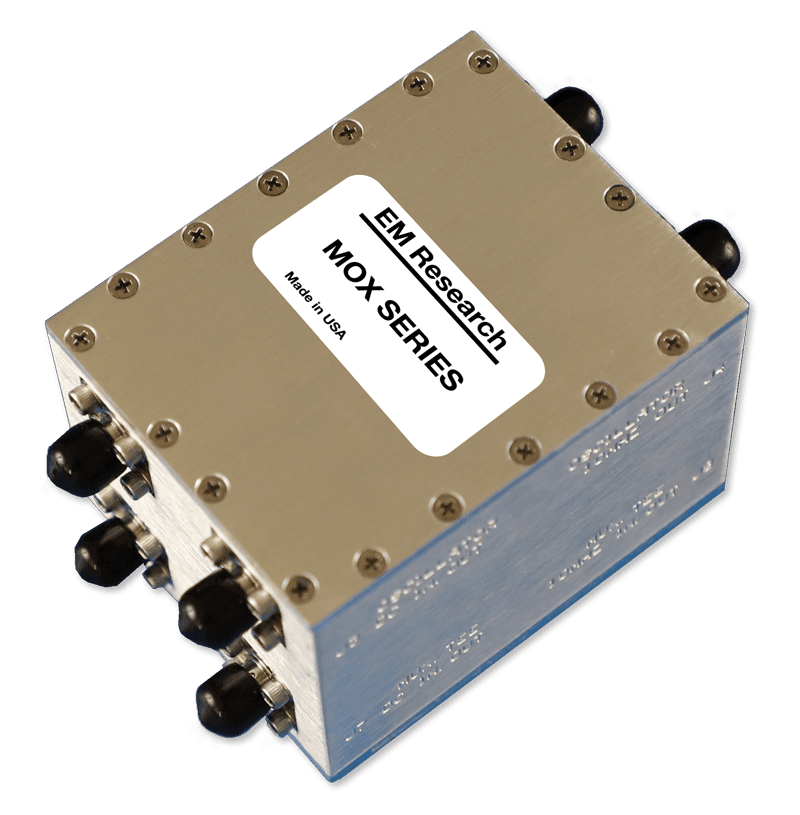

Master Oscillator Multiplexer
