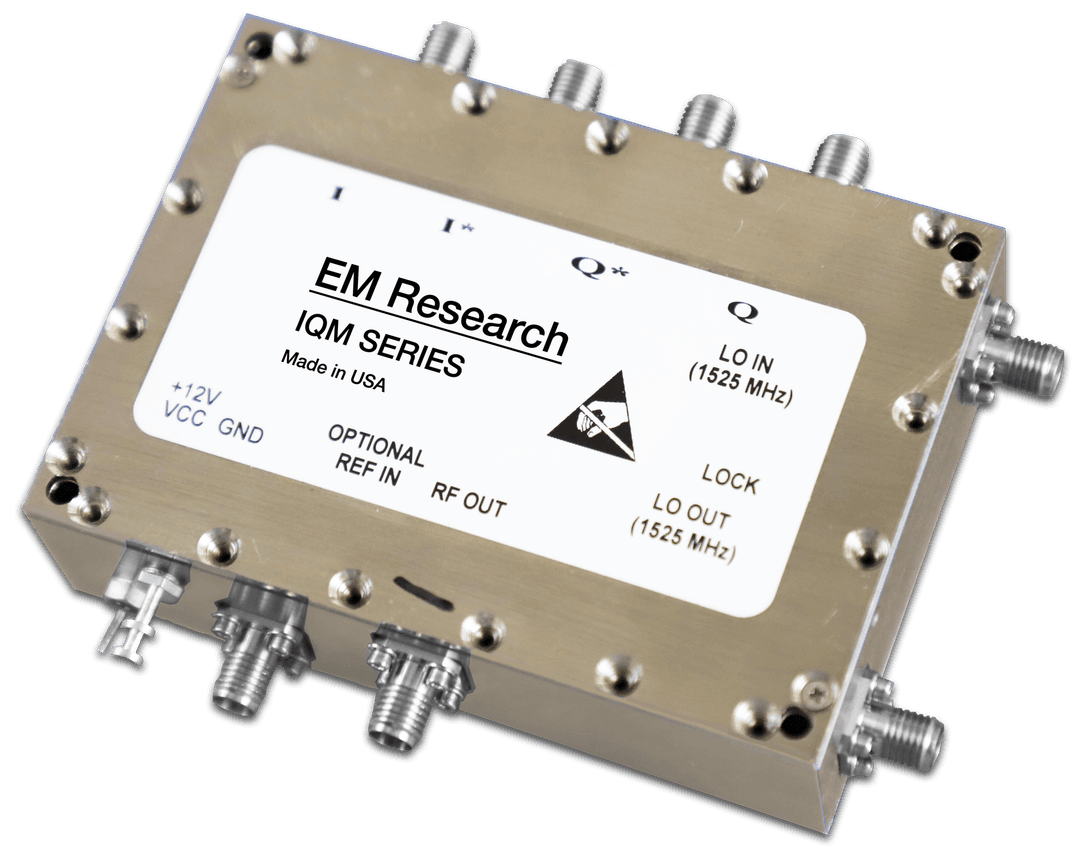

IQM Series
IQ Modulator
- Capable of receiving from DC to 500 MHz, LO inputs, outputting RF frequencies
- Internal low noise oscillator
- Internal reference
- Buffered modulator
- Balanced IQ
- Optimized for low EVM
- Internal Reference Detect Switch Optional (EM Research RDS Series)
- Up to 250 mega-symbols per second
Quick Answers
For RF Engineers
- What frequency range does the IQM Series cover?
- The IQM Series covers 1.02 GHz to 2.02 GHz.
For Program Managers
- Where is the IQM Series designed and manufactured?
- The IQM Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the IQM Series be customized for a specific program?
- Yes. All IQM Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the IQM Series?
- Submit a request through the IQM Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 1.02 GHz to 2.02 GHz |
|---|
Models — all models are configurable
| Model ID | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| IQM-1650-02 | 1.02 GHz | 2.02 GHz | -20 | 50 | -110 | -115 | -130 | +12 | 270 | QuoteSpec Sheet |
- Frequency
- 1.02 GHz – 2.02 GHz
- Power Out
- -20 dBm
- Reference
- 50 MHz
- PN @ 1 kHz
- -110 dBc/Hz
- PN @ 10 kHz
- -115 dBc/Hz
- PN @ 100 kHz
- -130 dBc/Hz
- VCC
- +12 V
- ICC
- 270 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
