Products
Frequency Generation

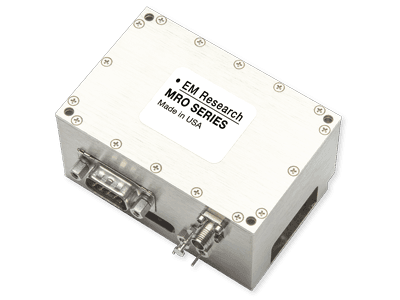

MRO Series
Fixed-Frequency Synthesizer
- Connectorized Package
- Replaces Oscillators in Microwave Radios
- Serially-Programmable
- Manually Fine-Tuned
- High Stability, <±1ppm (-10°C to +70°C)
- Non-Volatile Memory
Industries: Communications
Quick Answers
For RF Engineers
- What frequency range does the MRO Series cover?
- The MRO Series covers 2 GHz to 12 GHz.
- What package does the MRO Series come in?
- The MRO Series Fixed-Frequency Synthesizer comes in a 3.05” x 2.02” x 1.62” package.
- What is the Output of the MRO Series?
- MRO Series Output: up to +13 dBm.
- What is the Spurs of the MRO Series?
- MRO Series Spurs: <-70 dBc Typ.
- What is the Supply Voltage of the MRO Series?
- MRO Series Supply Voltage: +5, +8, +12 VDC @ 300 mA.
For Program Managers
- What industries use the MRO Series?
- The MRO Series is used in Communications applications. All models are configurable to specific requirements.
- Where is the MRO Series designed and manufactured?
- The MRO Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the MRO Series be customized for a specific program?
- Yes. All MRO Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the MRO Series?
- Submit a request through the MRO Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 2 GHz to 12 GHz |
|---|---|
| Output | up to +13 dBm |
| Spurs | <-70 dBc Typ |
| Supply Voltage | +5, +8, +12 VDC @ 300 mA |
| Stability | ≤±1 ppm (-10°C to +70°C) |
| Package Size | 3.05” x 2.02” x 1.62” |
Models — all models are configurable
| Model ID | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MRO-6150-03 | 6.15 GHz | +13 | -30 | Internal | -75 | -95 | -115 | -24 | 250 | QuoteSpec Sheet |
| MRO-6400-03 | 6.4 GHz | +13 | -30 | Internal | -75 | -95 | -115 | -24 | 250 | QuoteSpec Sheet |
- Frequency
- 6.15 GHz
- Power Out
- +13 dBm
- Harmonics
- -30 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -75 dBc/Hz
- PN @ 10 kHz
- -95 dBc/Hz
- PN @ 100 kHz
- -115 dBc/Hz
- VCC
- -24 V
- ICC
- 250 mA
- Frequency
- 6.4 GHz
- Power Out
- +13 dBm
- Harmonics
- -30 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -75 dBc/Hz
- PN @ 10 kHz
- -95 dBc/Hz
- PN @ 100 kHz
- -115 dBc/Hz
- VCC
- -24 V
- ICC
- 250 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
