Products

Frequency Generation

EXP Series

Switchable Fixed Frequency Synthesizer

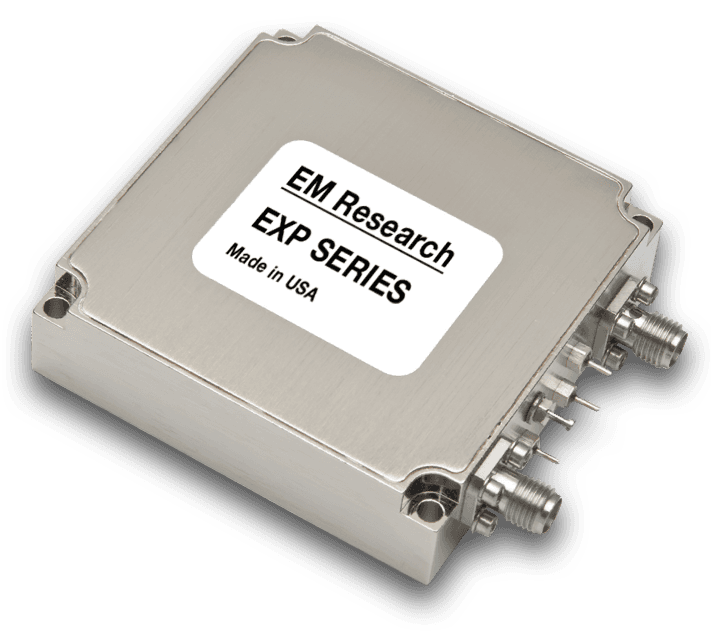

EXP Series Switchable Fixed Frequency Synthesizer product photo
  • Connectorized Package
  • Alternates Between Multiple Fixed Frequencies
  • Exceptionally-Low Phase Noise
  • DRO Replacement
  • Optional Internal Reference
  • Robust Designs Available
  • Optionally Hermetically-Sealed

Industries: Aerospace, Laboratory

Quick Answers

For RF Engineers

What frequency range does the EXP Series cover?
The EXP Series covers 9.3 GHz to 13.85 GHz.
What package does the EXP Series come in?
The EXP Series Switchable Fixed Frequency Synthesizer comes in a 2.25” x 2.25” x 0.6” package.
What is the Bandwidth of the EXP Series?
EXP Series Bandwidth: Fixed.
What is the Output of the EXP Series?
EXP Series Output: up to +13 dBm.
What is the Phase Noise of the EXP Series?
EXP Series Phase Noise: <-100 dBc/Hz @ 10 KHz offset.
What is the Harmonics of the EXP Series?
EXP Series Harmonics: <-25 dBc.

For Program Managers

What industries use the EXP Series?
The EXP Series is used in Aerospace, Laboratory applications. All models are configurable to specific requirements.
Where is the EXP Series designed and manufactured?
The EXP Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
Can the EXP Series be customized for a specific program?
Yes. All EXP Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
How do I request a quote or configuration for the EXP Series?
Submit a request through the EXP Series configuration form and EM Research will respond within 1 business day.

Series Specifications

EXP Series key specifications
Frequency Range9.3 GHz to 13.85 GHz
BandwidthFixed
Outputup to +13 dBm
Phase Noise<-100 dBc/Hz @ 10 KHz offset
Harmonics<-25 dBc
Spurs<-70 dBc
Supply Voltage+12 VDC current: ≤450 mA
External Reference10 to 100 MHz
Package Size2.25” x 2.25” x 0.6”

Models — all models are configurable

EXP-12000-02

Frequency
11 GHz – 12 GHz
Power Out
+13 dBm
Harmonics
-25 dBc
Reference
100 MHz
PN @ 1 kHz
-90 dBc/Hz
PN @ 10 kHz
-100 dBc/Hz
PN @ 100 kHz
-108 dBc/Hz
VCC
+12 V
ICC
450 mA
Request QuoteSpec Sheet
Request Configuration

This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
