Programmable Block Down-Converter
- Frequency range
- 17.7 GHz – 21.2 GHz
- Package size
- 6.7” x 4.0” x 1.0”
- Connectorized package
- Full K band
- Agile band placement
View Series →1 model
Products
Digital Data Sheet
PBDC-V-21200-04

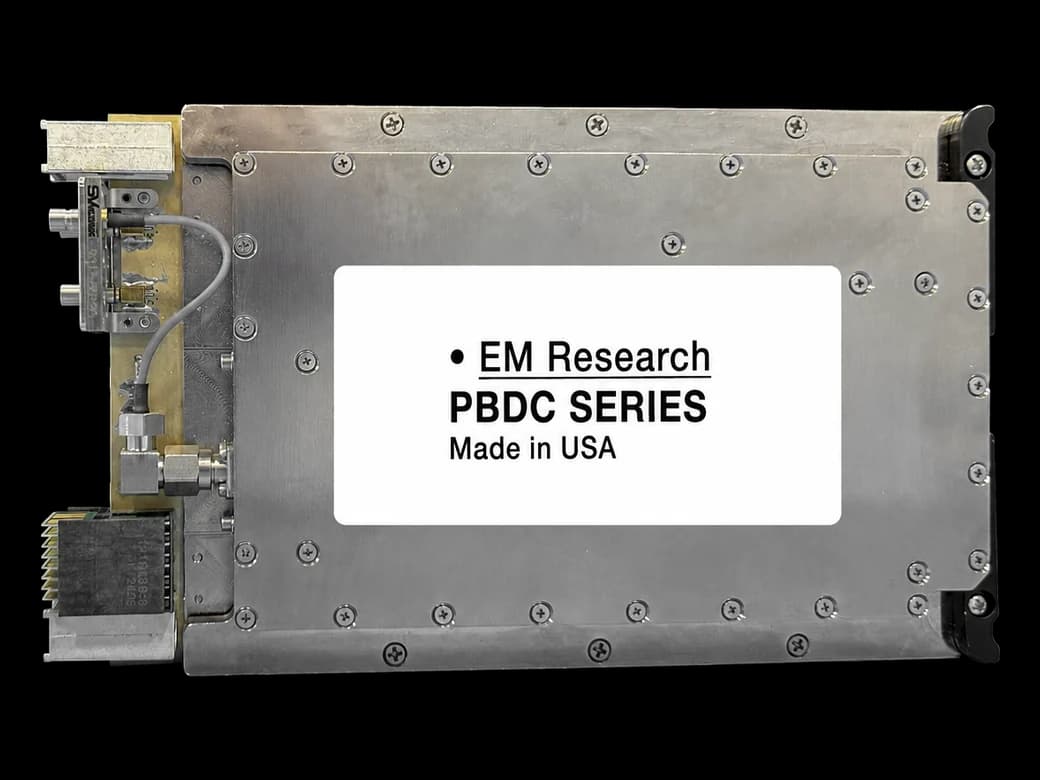

Programmable Block Down-Converter
Put your band wherever you want. Agile LO placement across the full k band in 50 MHz steps, on a VPX card for slot-based systems. All models configurable.
Series Features
- Dimensions available on request
- Full K band
- Agile band placement
- LO programmable in 50 MHz steps
- Integrated filters
- Gain control
- Low phase noise
- Low spurs
- Low power consumption
- Internal / external references
- RS232, RS485, CAN, SPI and I2C control
Applied Industries
Aerospace · Military · Satcom · Electronic Defense
Frequency
17.7 GHz – 21.2 GHz
Electrical Specifications
| Power Out | +10 dBm |
|---|---|
| Harmonics | -45 dBc TYP |
| Gain | 36 ±2 dB |
| VCC | 12 VDC ±0.5V |
| ICC | 1200 mA |
Phase Noise
| PN @ 1 kHz | -84 dBc/Hz |
|---|---|
| PN @ 10 kHz | -94 dBc/Hz |
| PN @ 100 kHz | -98 dBc/Hz |
Reference
| Reference | 10 MHz |
|---|
Environmental
| Temp Range | -20°C to +70°C, Case |
|---|
Mechanical
| Package | VPX card |
|---|
All specifications are typical unless otherwise specified and subject to change without notice. All models are configurable — contact EM Research for custom frequencies, packages, and screening.
