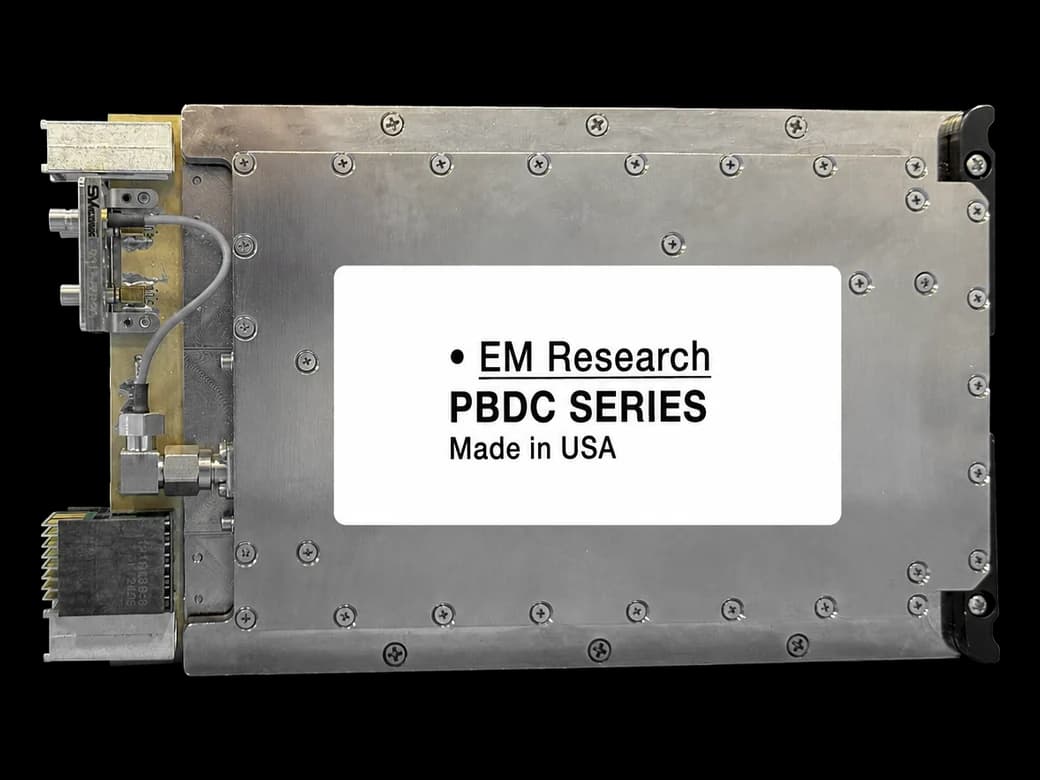

Programmable Block Down-Converter
- Frequency range
- 17.7 GHz – 21.2 GHz
- Package size
- 6.30” x 3.93” x 0.97”
- 3U VPX card, 1” pitch
- Full K band
- Agile band placement
View Series →1 model
Products
Signal Conversion

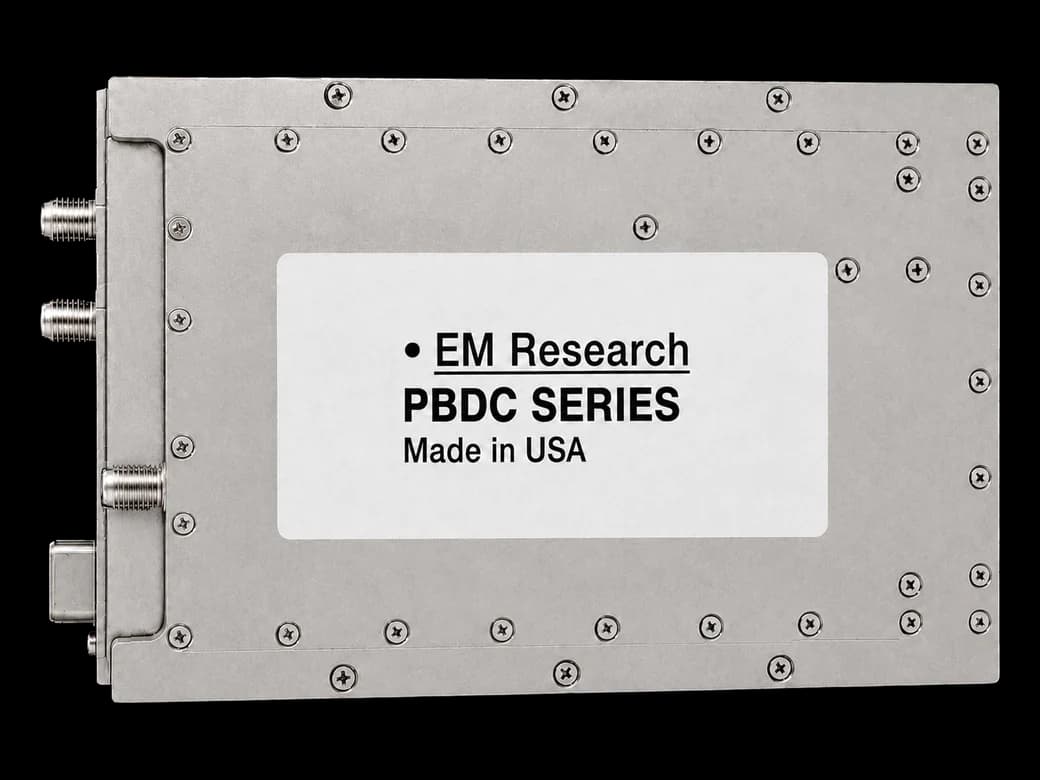

PBDC Series
Programmable Block Down-Converter
Put your band wherever you want. Agile LO placement across the full K band in 50 MHz steps, in a connectorized package. All models configurable.
- Connectorized package
- Full K band
- Agile band placement
- LO programmable in 50 MHz steps
- Integrated filters
- Gain control
- Low phase noise
- Low spurs
- Low power consumption
- Internal / external references
- RS232, RS485, CAN, SPI and I2C control
Industries: Aerospace, Military, Satcom, Electronic Defense
Quick Answers
For RF Engineers
- What frequency range does the PBDC Series cover?
- The PBDC Series covers 17.7 GHz to 21.2 GHz.
- What package does the PBDC Series come in?
- The PBDC Series Programmable Block Down-Converter comes in a 6.7” x 4.0” x 1.0” package.
- What is the IF Range of the PBDC Series?
- PBDC Series IF Range: 0.95 GHz–2.15 GHz (other ranges available).
- What is the Phase Noise of the PBDC Series?
- PBDC Series Phase Noise: -98 dBc/Hz @ 100 KHz.
- What is the Conversion Gain of the PBDC Series?
- PBDC Series Conversion Gain: 36 ±2 dB.
- What is the Harmonics of the PBDC Series?
- PBDC Series Harmonics: -45 dBc typ, -40 dBc max.
For Program Managers
- What industries use the PBDC Series?
- The PBDC Series is used in Aerospace, Military, Satcom, Electronic Defense applications. All models are configurable to specific requirements.
- Where is the PBDC Series designed and manufactured?
- The PBDC Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the PBDC Series be customized for a specific program?
- Yes. All PBDC Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the PBDC Series?
- Submit a request through the PBDC Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 17.7 GHz to 21.2 GHz |
|---|---|
| IF Range | 0.95 GHz–2.15 GHz (other ranges available) |
| Phase Noise | -98 dBc/Hz @ 100 KHz |
| Conversion Gain | 36 ±2 dB |
| Harmonics | -45 dBc typ, -40 dBc max |
| Spurs | -60 dBc, max |
| Input Level | +0 dBm max, no damage |
| Supply Voltage | +12 VDC, ±0.5V |
| Temperature Range | -20°C to +70°C, Case |
| Internal Reference | Optional |
| Stability | Same as Reference |
| External Reference | 10 MHz |
| Input Ref. Level | -3 to +3 dBm |
| Package | 6.7” x 4.0” x 1.0” |
Models — all models are configurable
| Model ID | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PBDC-21200-04 | 17.7 GHz | 21.2 GHz | +10 | -45 typ | 10 | -84 | -94 | -98 | 12 VDC ±0.5V | 800 | 36 ±2 dB | -20°C to +70°C, Case | Connectorized | QuoteSpec Sheet |
- Frequency
- 17.7 GHz – 21.2 GHz
- Power Out
- +10 dBm
- Harmonics
- -45 typ dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -84 dBc/Hz
- PN @ 10 kHz
- -94 dBc/Hz
- PN @ 100 kHz
- -98 dBc/Hz
- VCC
- 12 VDC ±0.5V V
- ICC
- 800 mA
- Gain
- 36 ±2 dB dB
- Temp Range
- -20°C to +70°C, Case
- Package
- Connectorized
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
Related Products
Quad Band Block Down Converter
- Frequency range
- 17.7 GHz – 22.2 GHz
- Package size
- 6.70” x 2.50” x 0.40”
- Connectorized Package
- Compact, Rugged Design
- Quadruple Band
View Series →1 model

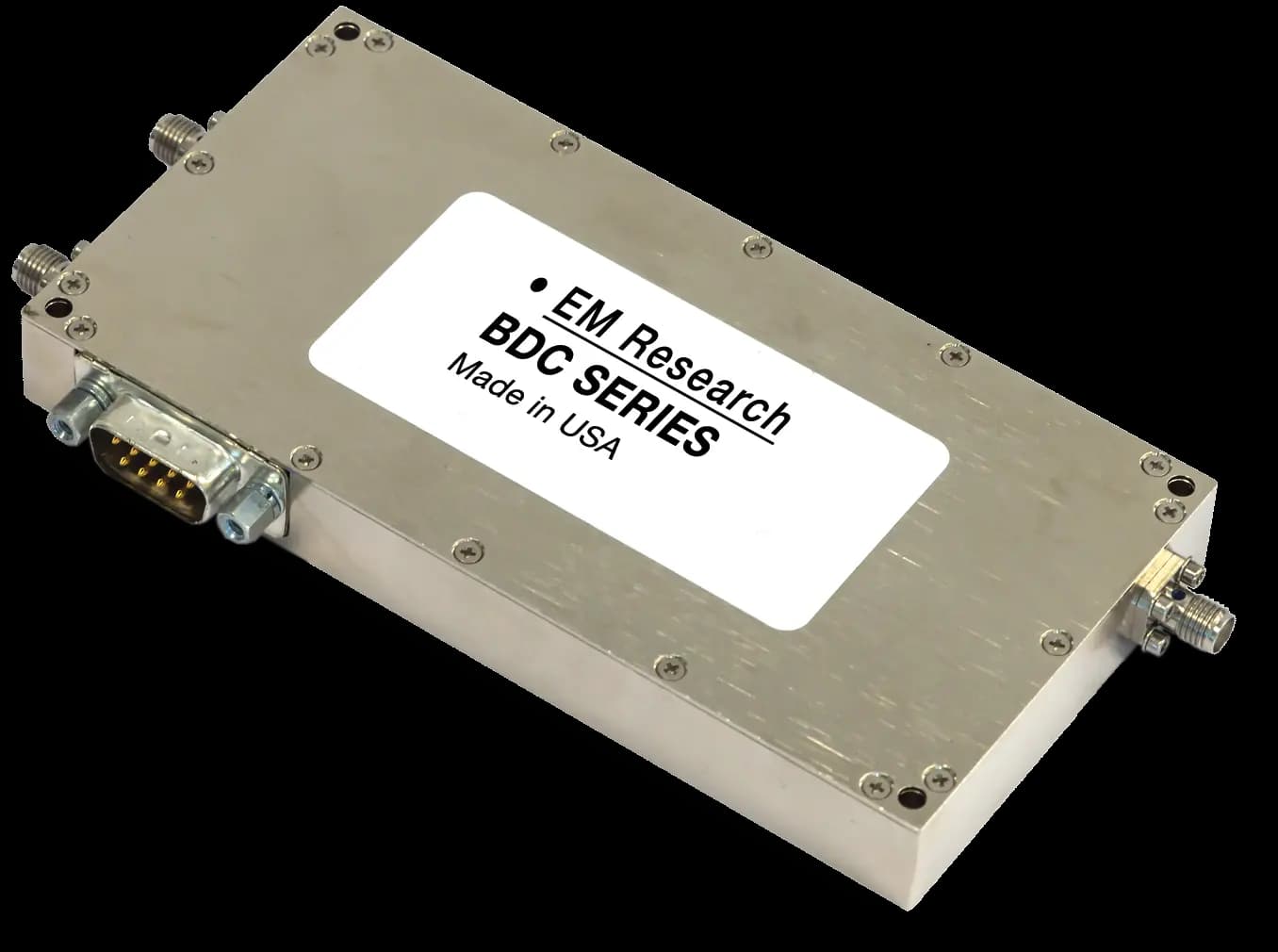

Block Down-Converter
