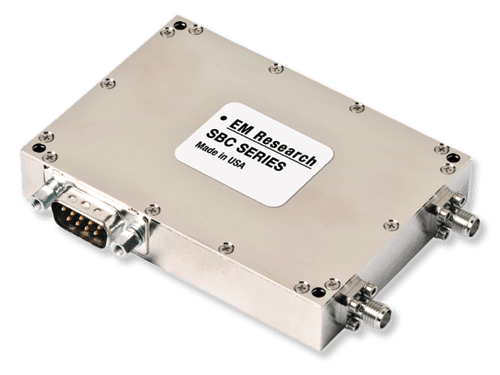

SBC Series
Programmable Frequency Synthesizer
- Connectorized Package
- Fine Resolution Design
- Broadband Designs Available
- Low Phase Noise
- Ultra-Low Spurs
- Optional Internal Reference
Industries: Communications, Laboratory
Quick Answers
For RF Engineers
- What frequency range does the SBC Series cover?
- The SBC Series covers 10 MHz to 18 GHz.
- What package does the SBC Series come in?
- The SBC Series Programmable Frequency Synthesizer comes in a 3.5” x 2.5” x 1” package.
- What is the Bandwidth of the SBC Series?
- SBC Series Bandwidth: up to 3 Octaves.
- What is the Output of the SBC Series?
- SBC Series Output: up to +10 dBm.
- What is the Phase Noise of the SBC Series?
- SBC Series Phase Noise: <-105 dBc/Hz @ 10 KHz offset (Fout = 4 GHz).
- What is the Harmonics of the SBC Series?
- SBC Series Harmonics: <-15 dBc.
For Program Managers
- What industries use the SBC Series?
- The SBC Series is used in Communications, Laboratory applications. All models are configurable to specific requirements.
- Where is the SBC Series designed and manufactured?
- The SBC Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the SBC Series be customized for a specific program?
- Yes. All SBC Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the SBC Series?
- Submit a request through the SBC Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 10 MHz to 18 GHz |
|---|---|
| Bandwidth | up to 3 Octaves |
| Output | up to +10 dBm |
| Phase Noise | <-105 dBc/Hz @ 10 KHz offset (Fout = 4 GHz) |
| Harmonics | <-15 dBc |
| Spurs | <-60 dBc |
| Supply Voltage | +5, +8, +12 VDC Current: ≤800 mA |
| Internal Reference | ≤±2.5 ppm, Stability |
| External Reference | 5 to 200 MHz |
| Package Size | 3.5” x 2.5” x 1” |
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SBC-520-03 | 340 MHz | 520 MHz | +10 | -20 | Internal | -110 | -117 | -117 | +5 | 820 | QuoteSpec Sheet |
| SBC-2750-03 | 1.6 GHz | 2.75 GHz | +7 | -15 | 10 | -95 | -100 | -105 | +12 | 750 | QuoteSpec Sheet |
| SBC-4860-03 | 1 GHz | 4.86 GHz | 0 | -15 | Internal | -85 | -95 | -105 | +5 | 770 | QuoteSpec Sheet |
| SBC-8600-02 | 7.8 GHz | 8.6 GHz | +10 | -20 | 10 | — | -90 | -100 | +5 | 650 | QuoteSpec Sheet |
- Frequency
- 340 MHz – 520 MHz
- Power Out
- +10 dBm
- Harmonics
- -20 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -110 dBc/Hz
- PN @ 10 kHz
- -117 dBc/Hz
- PN @ 100 kHz
- -117 dBc/Hz
- VCC
- +5 V
- ICC
- 820 mA
- Frequency
- 1.6 GHz – 2.75 GHz
- Power Out
- +7 dBm
- Harmonics
- -15 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -95 dBc/Hz
- PN @ 10 kHz
- -100 dBc/Hz
- PN @ 100 kHz
- -105 dBc/Hz
- VCC
- +12 V
- ICC
- 750 mA
- Frequency
- 1 GHz – 4.86 GHz
- Power Out
- 0 dBm
- Harmonics
- -15 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -95 dBc/Hz
- PN @ 100 kHz
- -105 dBc/Hz
- VCC
- +5 V
- ICC
- 770 mA
- Frequency
- 7.8 GHz – 8.6 GHz
- Power Out
- +10 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- —
- PN @ 10 kHz
- -90 dBc/Hz
- PN @ 100 kHz
- -100 dBc/Hz
- VCC
- +5 V
- ICC
- 650 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
