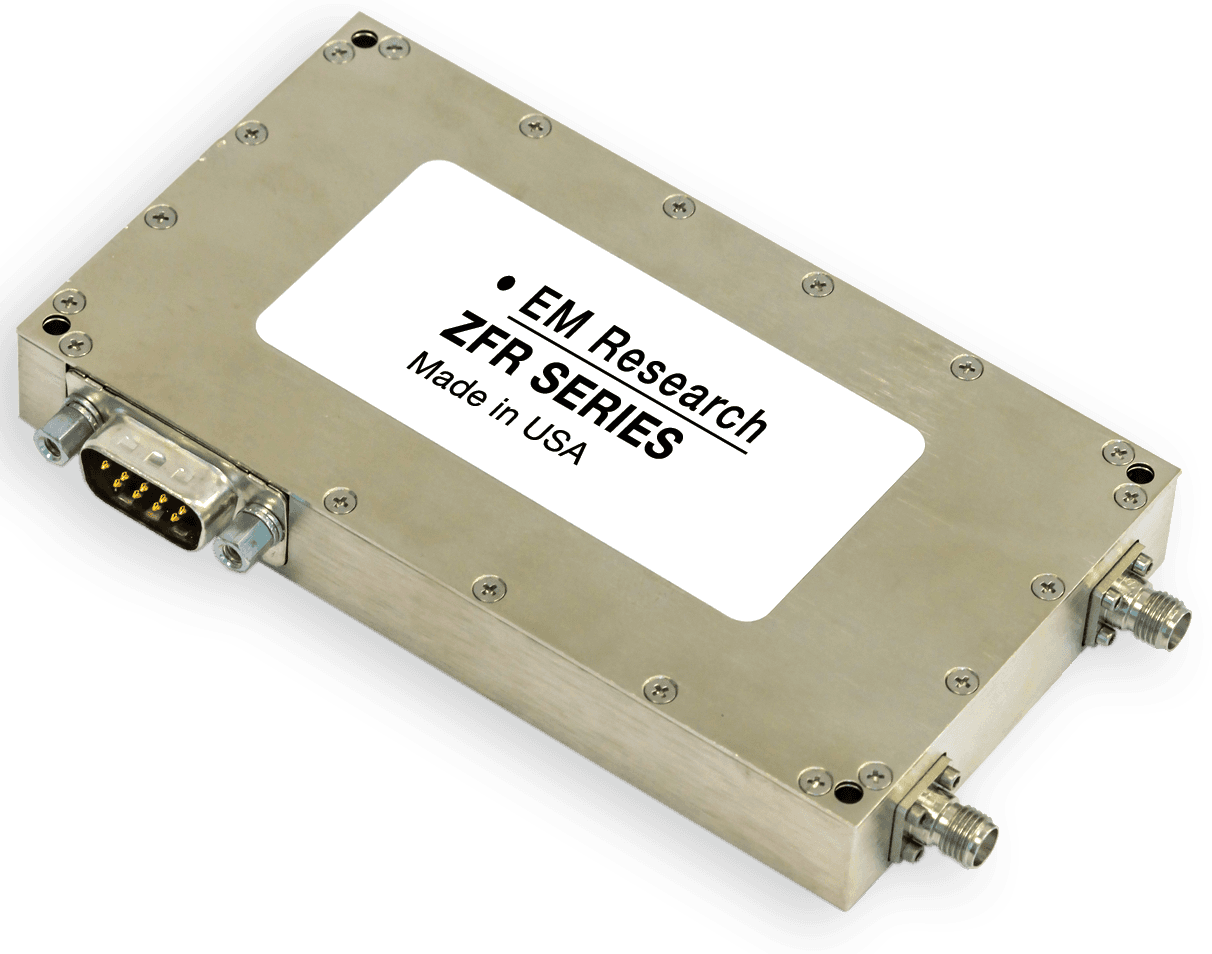

Programmable Frequency Synthesizer
- Frequency range
- 8 MHz – 31 GHz
- Package size
- 4.5” x 2.5” x 0.6”
- Connectorized Package
- Small Step Size
- Low Phase Noise
View Series →9 models
Products
Frequency Generation
EMC Series

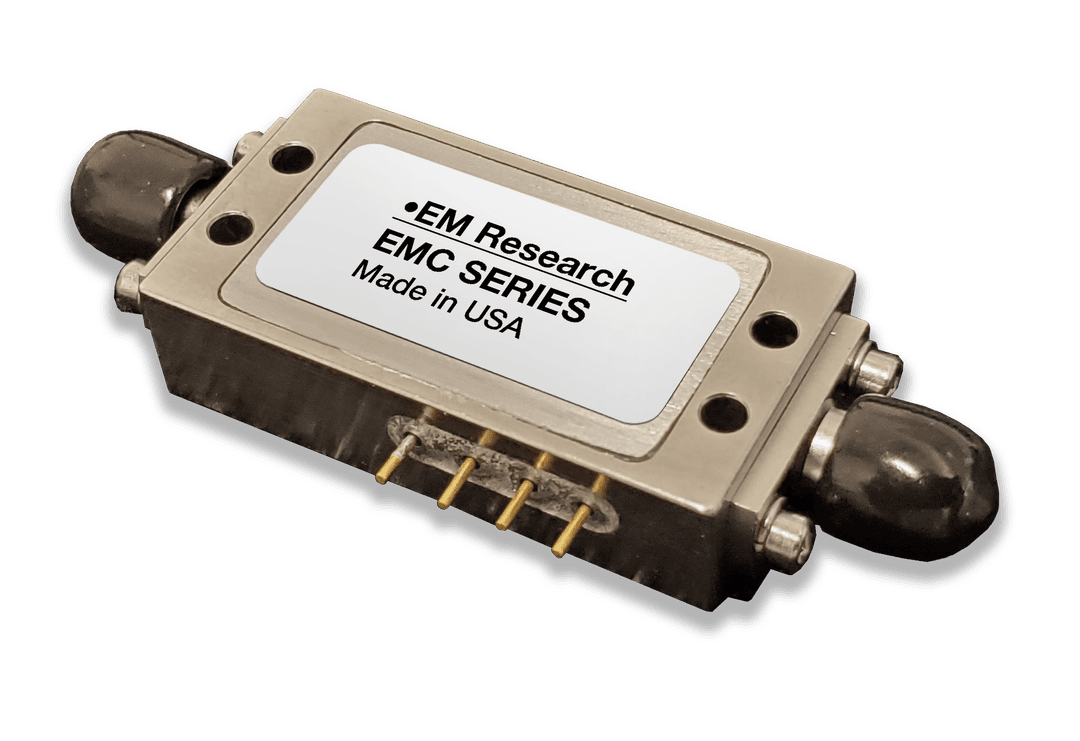

Frequency Generator
- Programmable
- Broadband
- Smallest Synthesizer
- Rugged
- Vibration Shock
- High Reliability
- Module Mount Available
- High Value
Industries: Military
Quick Answers
For RF Engineers
- What frequency range does the EMC Series cover?
- The EMC Series covers 550 MHz to 9.5 GHz.
- What package does the EMC Series come in?
- The EMC Series Frequency Generator comes in a 1.41" x 0.75" x 0.35" package.
- What is the Output of the EMC Series?
- EMC Series Output: +19 dBm +/- 3 dB.
- What is the Step Size of the EMC Series?
- EMC Series Step Size: 10 MHz.
- What is the Phase Noise of the EMC Series?
- EMC Series Phase Noise: <-88 dBc/Hz @ 10 KHz Offset.
- What is the Conversion Gain of the EMC Series?
- EMC Series Conversion Gain: NA.
For Program Managers
- What industries use the EMC Series?
- The EMC Series is used in Military applications. All models are configurable to specific requirements.
- Where is the EMC Series designed and manufactured?
- The EMC Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the EMC Series be customized for a specific program?
- Yes. All EMC Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the EMC Series?
- Submit a request through the EMC Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 550 MHz to 9.5 GHz |
|---|---|
| Output | +19 dBm +/- 3 dB |
| Step Size | 10 MHz |
| Phase Noise | <-88 dBc/Hz @ 10 KHz Offset |
| Conversion Gain | NA |
| Harmonics | <-15 dBC typ |
| Spurs | <-50 dBC typ |
| Input Level | 6 dBm, ± 3 dB |
| Supply Voltage | Vd1: 5V +/- o.5V @ 125 mA, Vd2: 20V +/- 2V @ 25 mA, Vd3: 6V +/- 0.5V @ 375 mA |
| Temperature Range | -30C to +70C |
| Internal Reference | Optional |
| Stability | Same as Reference |
| External Reference | 10 MHz |
| Package Size | 1.41" x 0.75" x 0.35" |
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| EMC-9500-02 | 5.5 GHz | 9.5 GHz | +19 | -15 typ | 10 MHz | -85 | -88 | -90 | 20 | -30C to +70C | QuoteSpec Sheet |
- Frequency
- 5.5 GHz – 9.5 GHz
- Power Out
- +19 dBm
- Harmonics
- -15 typ dBc
- Reference
- 10 MHz MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -88 dBc/Hz
- PN @ 100 kHz
- -90 dBc/Hz
- ICC
- 20 mA
- Temp Range
- -30C to +70C
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
Related Products

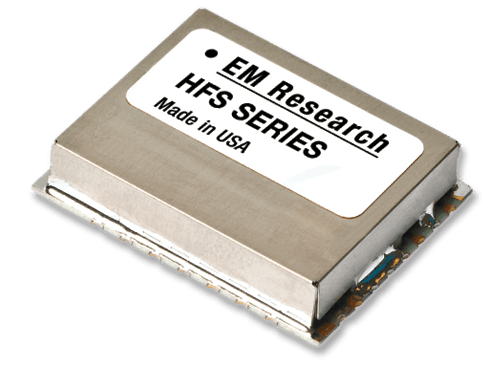

HFS Series
ProgrammableProgrammable Frequency Synthesizer
- Frequency range
- 50 MHz – 15 GHz
- Package size
- 1.25” x 1” x 0.25”
- Surface Mount Package
- Broadband Designs Available
- Optional Internal Reference
View Series →7 models
